Fuel Composition Scalar

Fuel Composition Scalar

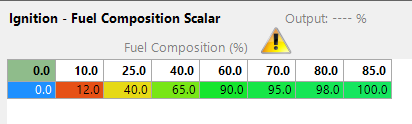

Fuel Composition Scaler

This table is used to blend the Timing - Fuel Composition Correction Table. The number inputted represents the percentage of correction to be applied based on ethanol content of the fuel where a Fuel Composition Sensor is used.
