Generic Correction
Generic Correction

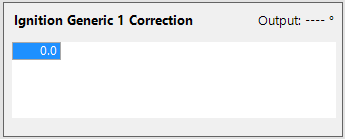

General purpose ignition timing correction table where custom axis can be configured by clicking on the GRID icon at the top of the screen, or by pressing the F3 key. Positive values will advance timing by that amount, negative values will retard timing by that amount. Up to 3D mapping is available with these tables, along with specific conditions to enable the table. Enabling one of these tables will open the Ignition – Generic Correction tab where the settings can be accessed. (Default = Disabled)
