Ignition Offset

Ignition Offset

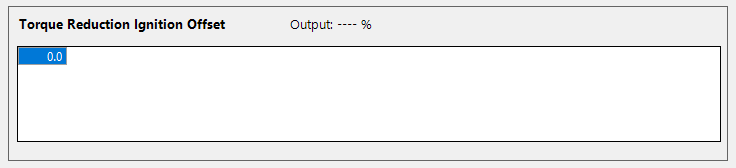

Torque Reduction Ignition Offset Table




This table allows for an ignition timing percentage correction to be applied to the shift table. This can assist when more or less ignition retard is required under certain conditions (for example if the air temperature is above a certain temperature). The Ignition Offset (if set) will be applied to whichever table is active at the time. Both axes for this table are user configurable. Up to 3D mapping is available
