Ignition Retard

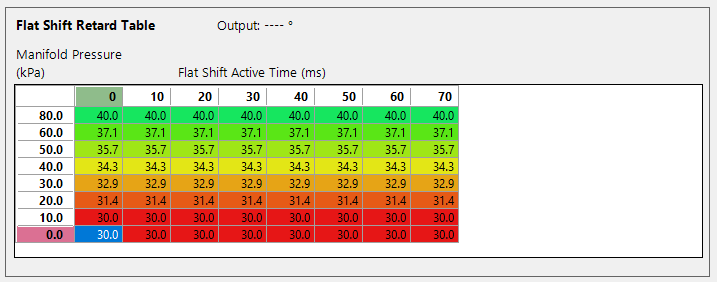

Flat Shift Ignition Retard

Available when the Flat Shift Cut Type is set to Ignition Retard. This allows for up to 3D (8x8) mapping of ignition retard to be used to limit engine power during flat shift.
