RPM Limiter Ignition Correction

RPM Limiter Ignition Correction

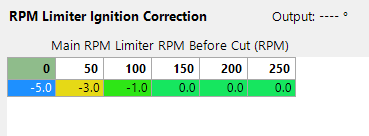

This table controls how many of degrees of ignition timing correction will be applied as the engine approaches the rev limiter
