Intercooler System

Intercooler System

To assist in the operation of the intercooler, a water spray can be enabled and setup to spray water onto the intercooler when conditions are met. Intercooler spray can also be enabled and disabled by the setup of a switch input (Auto or Manual) and can also activate an indicator light if available. An intercooler fan can be configured based on intake air temperature.



Wiring Tab

Options

Conditionally Triggered

The intercooler system can be activated by a manual switch, or via activation conditions.

Disabled

Requires manual activation for intercooler spray.

Enabled - Always Armed

Intercooler spray is permanently armed, and will activate when conditions are met.

Enabled - Arming Switch

Intercooler spray is armed via a switch, and will activate when both switch is on, and conditions are met.

Spray Manual Switch

Used to activate intercooler spray. Overrides activation conditions.

Spray Indicator

Enables an indicator light output, which will turn on when intercooler spray is active.

Fan Enable

Enables an intercooler fan output. Activation conditions based on intake air temperature.

Connections

Spray Output

Configure which output is used for the intercooler spray.

Spray Auto Switch Input

Configure which input is used for the Spray Auto Switch.

Spray Manual Switch Input

Configure which input is used for the Spray Manual Switch.

Spray Indicator Output

Configure which output is used for the Spray Indicator.

Fan Output

Configure which output is used for the Fan Output.

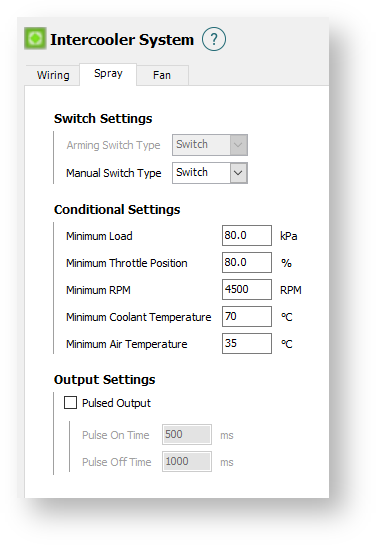

Spray Tab


Switch Settings

Arming Switch Type

The type of switch that is used for the arming input.

Switch

Simple two-way switch that is either in the "on" or "off" position.

Latching

Switch that alternates between 'on' and 'off' state when pressed (momentary button).

Manual Switch Type

The type of switch that is used for the manual input.

Switch

Simple two-way switch that is either in the "on" or "off" position.

Latching

Switch that alternates between 'on' and 'off' state when pressed (momentary button).

Conditional Settings

Intercooler spray will be active when all of the conditions are exceeded simultaneously.

Minimum Load

Intercooler spray is enabled when this load value is exceeded

Minimum Throttle Position

Intercooler spray is enabled when this throttle position value is exceeded.

Minimum RPM

Intercooler spray is enabled when this RPM value is exceeded.

Minimum Coolant Temperature

Intercooler spray is disabled while coolant temperature is below this value.

Minimum Air Temperature

Intercooler spray is disabled while air temperature is below this value.

Output Settings

Pulsed Output

Enables a pulsed output with a set on/off time. If this setting is disabled, when the output is active it will not be pulsed.

Pulse On Time

Enter the on time in ms for the pulsed output.

Pulse Off Time

Enter the off time in ms for the pulsed output.

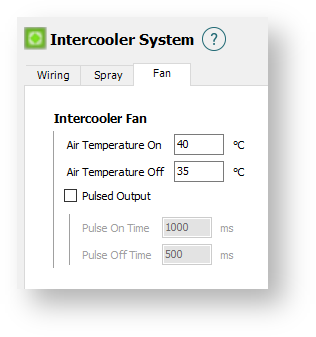

Fan Tab


Intercooler Fan

Air Temperature On

The temperature at which the intercooler fan will be switched on.

Air Temperature Off

The temperature at which the intercooler fan will be switched off.

Pulsed Output

Enables a pulsed output with a set on/off time. If this setting is disabled, when the output is active it will not be pulsed.

Pulse On Time

Enter the on time in ms for the pulsed output.

Pulse Off Time

Enter the off time in ms for the pulsed output.
