Kill Switch

Kill Switch

Kill Switch

​

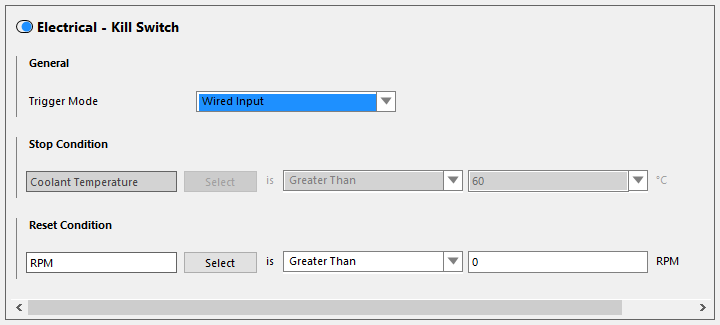

General

Trigger Mode - This selects the trigger mode for the Kill Switch.
Wired Input - A switch is to be wired to an input to shut down the engine.
Conditionally Triggered - ECU conditions are used to shut down the engine.


Stop Condition

Available when the Trigger Mode is set to Conditionally Triggered. This allows setting of the ECU condition to activate the Kill Switch function.

Reset Condition

The conditions to allow normal operation to commence.
