Knock Sensor (Optional)

Knock Sensor (Optional)

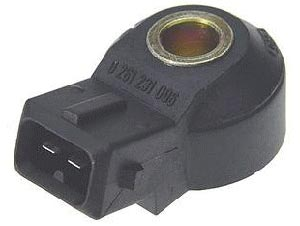

Knock sensors detect engine knock and sends a voltage signal to the ECU. The Elite Series ECU uses the knock sensor signal to modify ignition timing if knocking occurs. Knock Sensors can be connected to the knock input connections on the ECU.
