Kill Switch Wiring

Kill Switch Wiring

Wiring

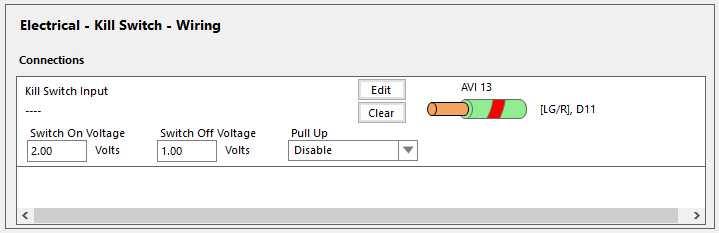

This node allows you to assign the input for the Kill Switchn. Any available AVI (Analogue Voltage Input) or SPI (Synchronised Pulsed Input) can be used.
CAN Keypad buttons may also be used.

Edit - Click to assign / reassign an available input as Kill Switch Input.

Clear - Click to reset input assignment.

Switch On Voltage - The voltage above which the switch will turn On. Minimum = 0.0, Maximum = 5.0.

Switch Off Voltage - The voltage below which the switch will turn Off. Minimum  = 0.0, Maximum = 5.0.

Pull-up = Enables a pull-up resistor on the input. 1K ohms to 5 volts.
