Launch Control
The Launch Control function allows control of RPM and the power produced by the engine during the launching of the vehicle. This is done by introducing a temporary RPM Limiter, together with fuel and ignition mapping.
Warning
Using Launch Control on your engine can cause overheating of engine, exhaust system and valve train. Additional stresses on engine and driveline can cause damage and possible failure of gearbox, drive shafts, differentials, clutch and or crankshaft. Only experienced operators should attempt to use this feature.

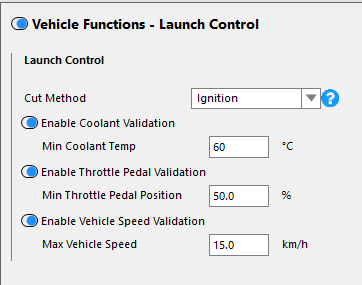

Launch Control Page
Launch Control
Cut Method
Select if Fuel or Ignition is to be used to limit the engine. The same Cut Type (Hard or Soft) will be used as set in the RPM Limiter function.Enable Coolant Validation
Allows engine Coolant Temperature to be used to enable Launch Control. This can be set to prevent Launch Control being used on a cold engine.Min Coolant Temp
The engine coolant temperature must be above this amount before Launch Control can be activated.Enable TPS Validation
Allows the Throttle Position Sensor to be used to enable Launch Control.Min TPS
The Throttle Position Sensor must be greater than this amount for Launch Control to be active.Enable Vehicle Speed Validation
Allows Vehicle Speed to be used to enable Launch Control.Max Vehicle Speed
Launch Control will only operate below this amount of vehicle speed.
