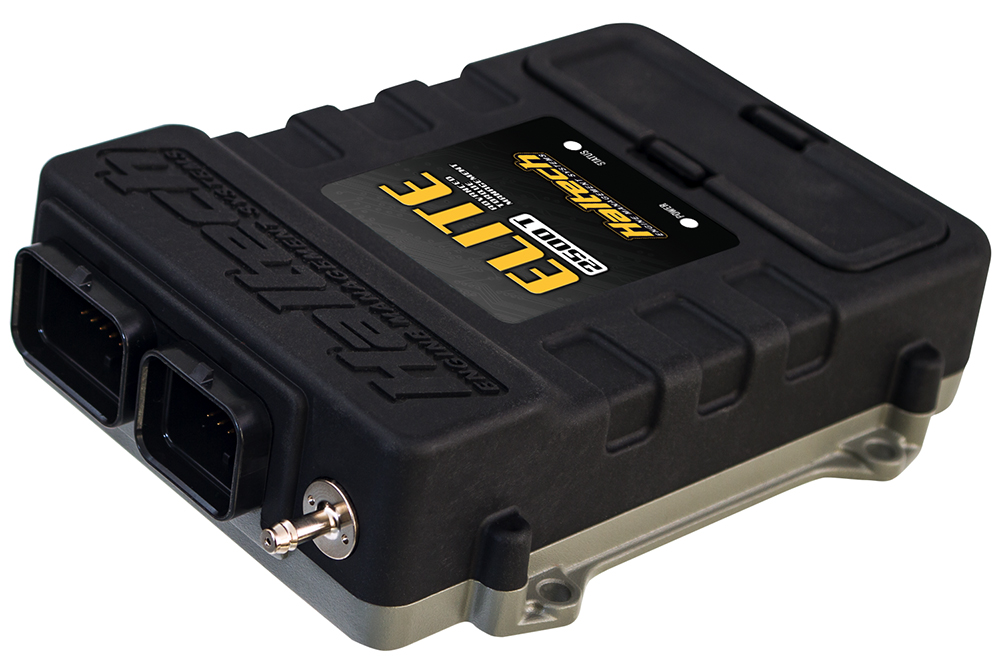

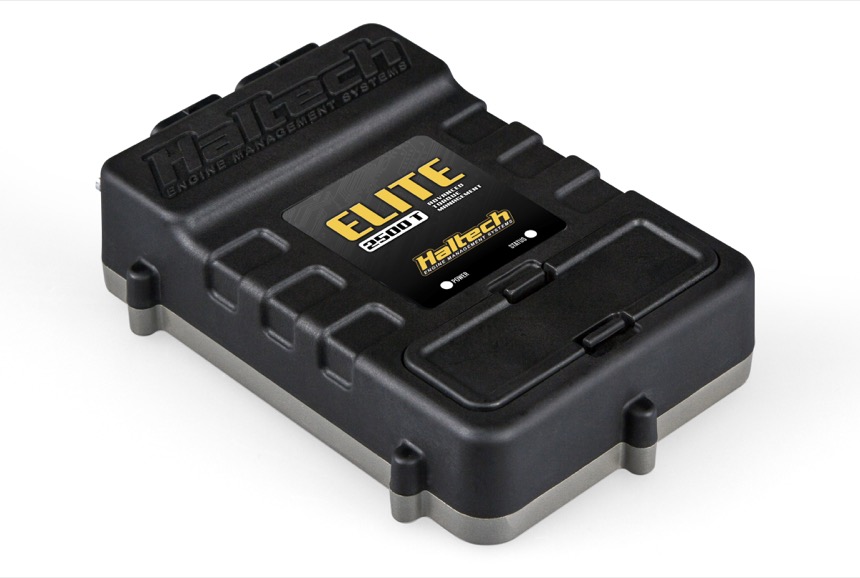

Elite 2500 T Overview

Elite 2500 T Overview

Haltech Elite Series ECUs take the art of Engine Management to a brand new level. With a waterproof case, drive-by-wire, exhaust cam and knock control, the Elite 2500 T ECU provide cutting edge technology to tuners and performance enthusiasts world-wide.

Features:

• Waterproof Case (IP67 - only with pocket cover or waterproof USB Cable and USB Cap fitted)

NOTE: Waterproof USB Cable (HT-070002) and Waterproof USB Cap (HT-070004) are sold separately

  • Waterproof Case (IP67) (With Pocket Cover Fitted)

  • Torque Management Functionality

  • 8 x Fuel Injection Outputs

  • 8 x Ignition Outputs

  • 28 x Digital Outputs

  • 10 x Analogue Voltage Inputs

  • USB Laptop Communications up to 1 MB/s

  • 6 x Engine Position Inputs with extensive trigger type support

  • Programmable Injector Peak and Hold Currents

  • OBDII Capable - Set and clear diagnostic trouble codes, view live engine data

  • ESP Calibration Software - Intuitive and easy to use

  • Dual CAN Bus communication for OEM and Haltech CAN Expansion

  • User definable 5D Tuning - Tune by gear, Cam angle or any channel for ultimate flexibility

  • Variable cam control - Independently control up to 4 camshafts Auto tune capabilities -

  • Short and Long term fuel, ignition, boost and idle control learning

  • Dual Channel Knock Control - with high speed digital filtering for accurate detection

  • Multi-fuel Support - Support for Petrol (Gasoline),LPG, Methanol and Ethanol

  • E85 Flex Fuel Ready – Direct connection to sensor.

  • Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time

  • Closed Loop Idle Control – With learning for consistent idle stability

  • Closed Loop 02 Control – Dual bank control for precise tuning

  • Anti-Lag and Launch Control – Drag and Rally modes

  • Data logging – Up to 40 channels of logging. Sampling rates up to 5ms

  • Multi Level Engine Protection – Set limits for sensors and protect your engine

  • ECU comes fully enabled, no additional charges for advanced features
