Long Term Trim

Long Term Trim

Long Term Trim



This node allows you to enable, disable and reset the long term trim learning in the ECU.
The Apply to Base Table button will apply any long term trims to your Base Idle Control table.

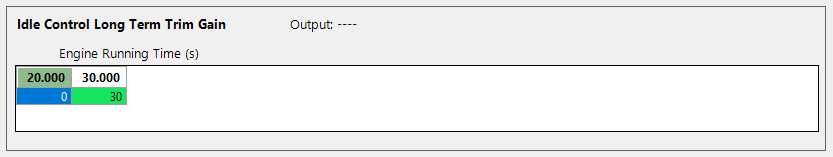

Long Term Trim Gain


This table controls the rate at which the Long Term control can make corrections to the Long Term Trim table. Larger numbers will learn faster but can cause oscillations, and smaller numbers will make corrections at a slower rate. Up to 3D mapping is available.


Long Term Trim


Shows the amount of correction the Long Term Trim is making. This table is user definable for axis values, however the axis channels are fixed to be the same as are used for the Base Duty Cycle table. This table can be adjusted by the tuner simultaneously whilst the Long Term Control is making changes. Up to 3D mapping is available.
