Longitudinal G Sensor

Longitudinal G Sensor

The Longitudinal G Sensor is used to determine the forward or backward acceleration of a vehicle. This includes the normal acceleration as well as decelerating braking forces.


Wiring Tab

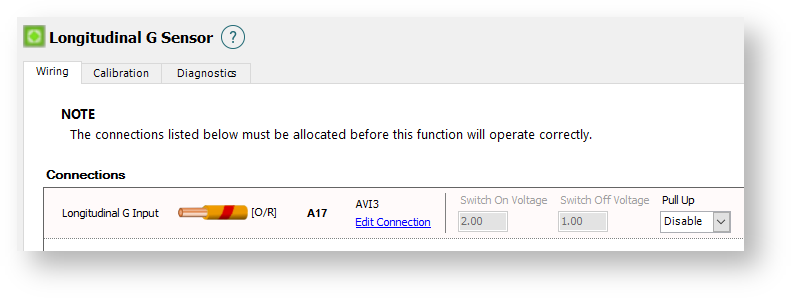

Connections

Longitudinal G Input

Select an appropriate input to use for the Longitudinal G sensor. An AVI (Analogue Voltage Input) or an SPI (Synchronised Pulsed Input) must be used.

Connection Type

AVI

An AVI (Analogue Voltage Input) is suggested.

Pull up

Enables a 1k pull up resistor to 5V.

Typically the pull up should be enabled with any two-wire temperature sensor, and disabled for sensors with their own voltage supply. If the sensor is being shared with another ECU, such as with a piggyback installation with an OEM ECU, then the other ECU will generally include a necessary pull up and this setting should be set to Disabled.

SPI

An SPI (Synchronised Pulsed Input) can be used where there are no available AVIs.

Sensor Type

Set to Hall Effect for all analogue inputs

Pull up

Enables a weak 10k pull up resistor to 5V.

Typically the pull up should be enabled with any two-wire temperature sensor, and disabled for sensors with their own voltage supply. If the sensor is being shared with another ECU, such as with a piggyback installation with an OEM ECU, then the other ECU will generally include a necessary pull up and this setting should be set to Disabled.

Calibration Tab

This allows calibrations for a Longitudinal G Sensor to be loaded or saved. A number of calibrations come pre-installed with the ESP Software package. If your sensor is not listed, a custom calibration can be created with the data provided by the sensor manufacturer. The default calibration will be for the Haltech 150psi Pressure Sensor.

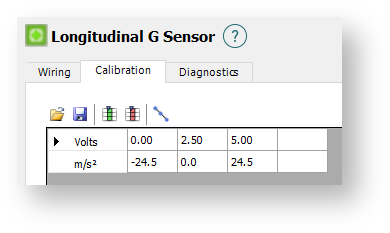

From the image above:

1 – Selecting the yellow Open icon on the top left will allow the loading of a pre-configured calibration file.

2 – Selecting the blue Disk icon next to the open icon will allow the saving of your custom calibration file.

Diagnostics Tab

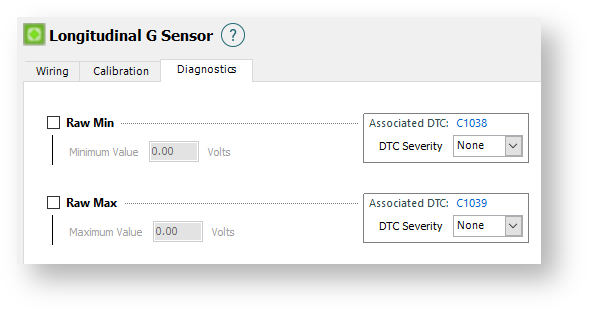

The settings in this tab allow limits to be set for the detection of either fault conditions, or conditions that could be considered to cause engine damage.

Raw Min

When enabled, this allows for the error code C1038 to be set when the voltage is below the set amount. This is used to detect a short or disconnection with the wiring. If the Engine Protection function is active a DTC Severity level can be selected for this condition if desired. (Default = Disabled)

Raw Max

When enabled, this allows for the error code C1039 to be set when the voltage is above the set amount. This is used to detect a short or disconnection with the wiring. If the Engine Protection function is active a DTC Severity level can be selected for this condition if desired. (Default = Disabled)

Related Tables

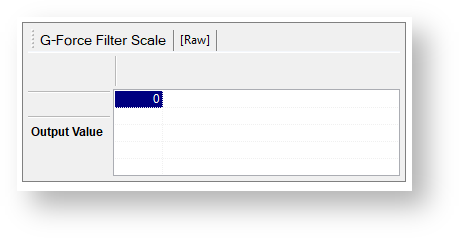

G-Force Filter Scale

Under ECU Navigator > Sensor Properties > G-Force Filter Scale

This table applies to both the Lateral and Longitudinal G Sensors if enabled and configured. It outlines the filter level on the Lateral and Longitudinal G Sensor signals. This is used to filter out any noise on the signal (for example from chassis vibration) to result in a more accurate reading.
