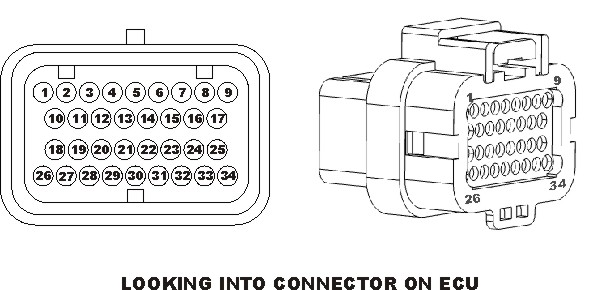

Elite 2000 Main Connector Pinout - 34 Pin
|
Pin # |
Wire Colour |
Connection |
Notes |
|
1 |
V/BR |
DPO 2 |
1A Max Current output to ground, Fixed 5v Pull-up |
|
2 |
O/Y |
AVI 4 |
0-5v signal input, switchable 1K pull up |
|
3 |
Y/B |
IGN 1 |
1A Max Current |
|
4 |
Y/R |
IGN 2 |
1A Max Current |
|
5 |
Y/O |
IGN 3 |
1A Max Current |
|
6 |
Y/G |
IGN 4 |
1A Max Current |
|
7 |
Y/BR |
IGN 5 |
1A Max Current |
|
8 |
Y/L |
IGN 6 |
1A Max Current |
|
9 |
O |
+5V DC |
100mA Max Current |
|
10 |
B |
BATTERY GROUND |
Connect to Vehicle Battery Negative Terminal (-) |
|
11 |
B |
BATTERY GROUND |
Connect to Vehicle Battery Negative Terminal (-) |
|
12 |
O/W |
+8V DC |
100mA Max Current |
|
13 |
P |
12V IGNITION INPUT |
12V on IGN and Cranking Only |
|
14 |
W |
AVI 10 ( TPS ) |
0-5v signal input, Software Switchable 1K pull up resistor |
|
15 |
Y |
AVI 9 ( MAP ) |
0-5v signal input, Software Switchable 1K pull up resistor |
|
16 |
O/B |
AVI 2 |
0-5v signal input, Software Switchable 1K pull up resistor |
|
17 |
O/R |
AVI 3 |
0-5v signal input, Software Switchable 1K pull up resistor |
|
18 |
V/B |
DPO 1 |
1A Max Current output to ground, User definable pull-up |
|
19 |
L |
INJ 1 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
20 |
L/B |
INJ 2 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
21 |
L/BR |
INJ 3 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
22 |
L/R |
INJ 4 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
23 |
V/R |
DPO 3 |
1A Max Current output to ground, Fixed 12v Pull-up |
|
24 |
B/Y |
DPO 5 ( FUEL PUMP TRIGGER) |
1A Max Current output to ground, Fixed 12v Pull-up |
|
25 |
B/R |
DPO 6 ( ECR OUT) |
1A Max Current output to ground, Fixed 12v Pull-up |
|
26 |
R/L |
ECU INJECTOR POWER INPUT
|
12V input from injector power relay |
|
27 |
L/O |
INJ 5 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
28 |
L/Y |
INJ 6 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
29 |
L/G |
INJ 7 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
30 |
L/V |
INJ 8 |
Current Controlled , 0-8A Peak , 0 - 2A Hold |
|
31 |
G |
STEPPER 1 P1 / DPO |
Hi / Lo Side Driver, 1A Max Current Source & Sink |
|
32 |
G/B |
STEPPER 1 P2 / DPO |
Hi / Lo Side Driver, 1A Max Current Source & Sink |
|
33 |
G/BR |
STEPPER 1 P3 / DPO |
Hi / Lo Side Driver, 1A Max Current Source & Sink |
|
34 |
G/R |
STEPPER 1 P4 / DPO |
Hi / Lo Side Driver, 1A Max Current Source & Sink |
