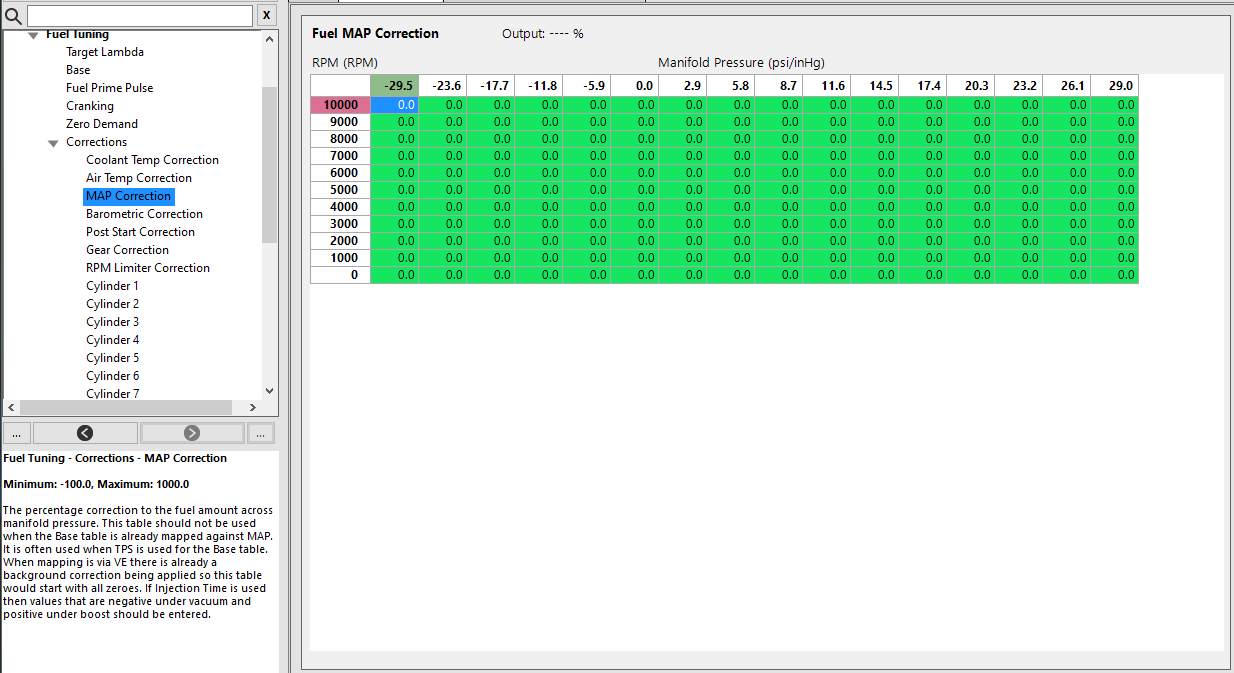

This table controls additional fuel against Manifold Pressure.

When the Tuning Method is Volumetric Efficiency, the ECU is already compensating for Manifold Pressure and therefore this table is treated as an additional correction. Before tuning commences this table should be set to 0%.

It is common to see values in this table when using TPS as the fuel load source once the engine starts to lose efficiency with additional manifold pressure or pumping losses.
