MSD Cam Sync Distributor

MSD Cam Sync Distributor





DESCRIPTION

MSD Holley part number: 2357 (Chevy with Hall Sync)
Haltech does not sell this part.

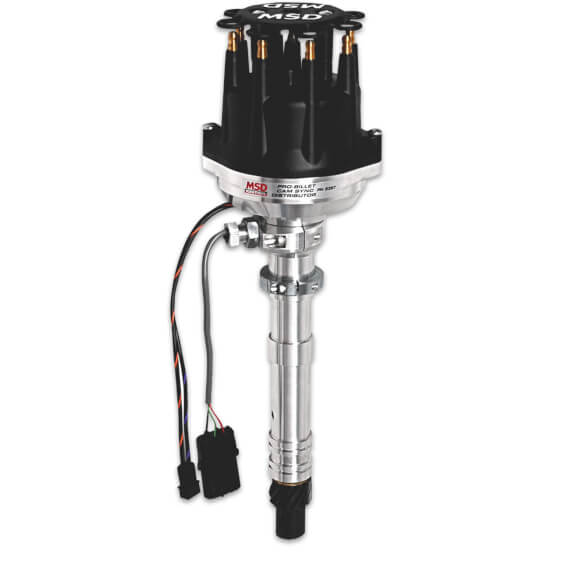

This distributor has a reluctor 8x tooth trigger system, together with a 1x Hall Effect sync sensor.  It provides information to the ECU necessary to support sequential injection control.




SETTINGS






WIRING


Trigger




Wire Colour
Haltech Connection (Trigger 4-core)
Orange/Black
Trigger + (Yellow)
Orange/Violet
Trigger - (Green)




Home




Wire Colour
Haltech Connection (Home 4-Core)
Red
12V+ (Red)
Green
Home + (Yellow)
Black
Signal Ground (Blue)
