Nitrous Pressure Sensor
A Nitrous Pressure Sensor can be used with your ECU for datalogging and for Engine Protection purposes, to conditionally de-activate a nitrous stage based on bottle pressure, or to activate a bottle heater blanket based on bottle pressure. Up to 4 Nitrous Pressure Sensors can be connected to your ECU.

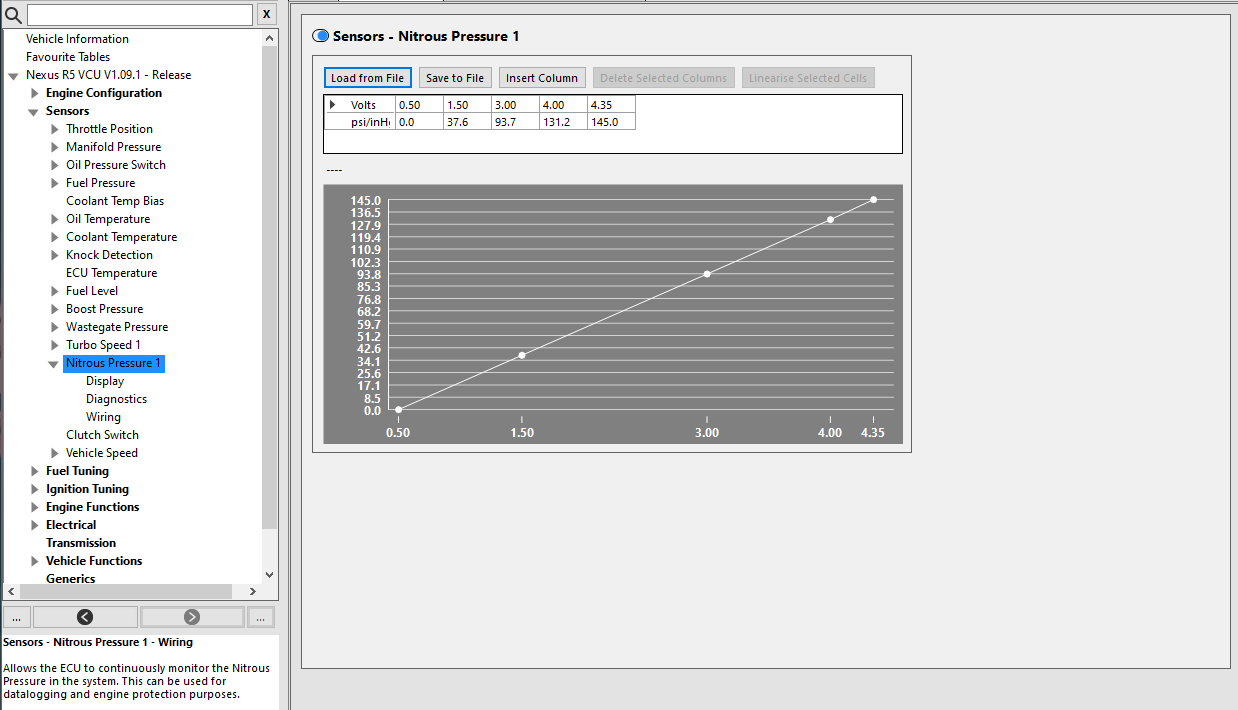

On this node, the Nitrous Pressure sensor calibration can be loaded or entered manually. If you have purchased a Pressure sensor from Haltech, calibrations can be loaded directly into the calibration table by using the 'Load from File' button. Calibrations can be saved to file by using the 'Save to File' button.

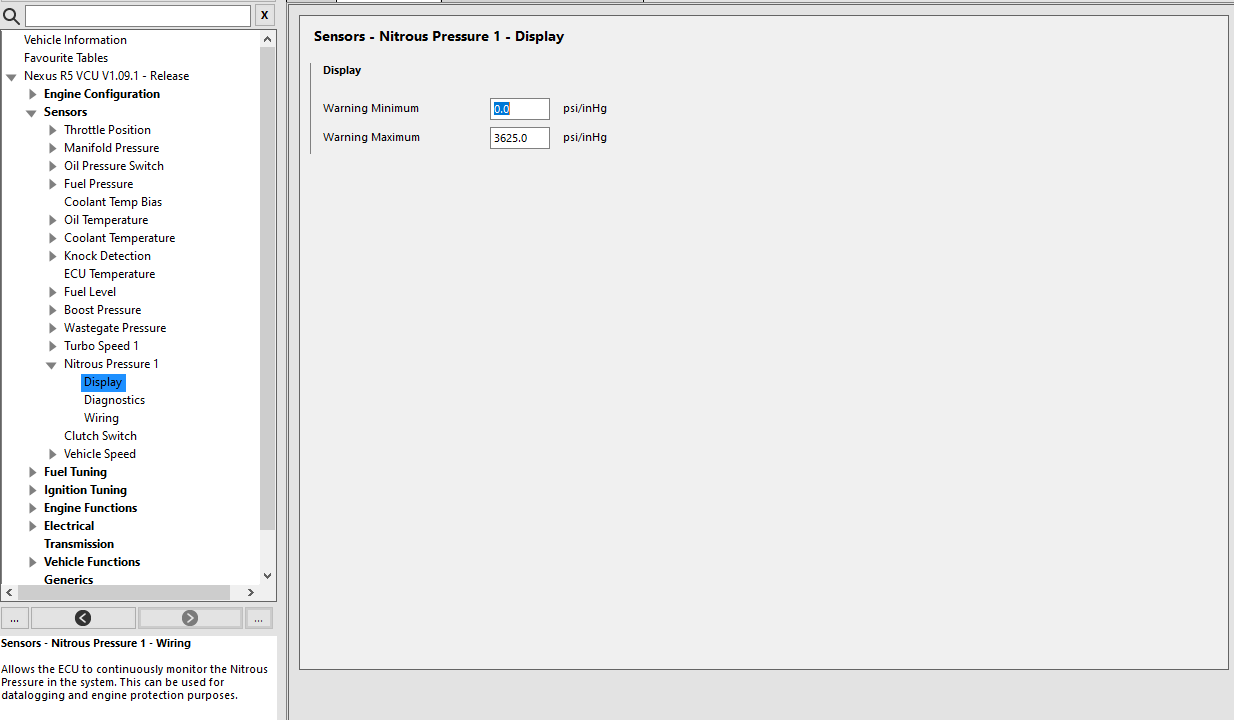

Display
This node sets the display settings for the Nitrous Pressure channel.
Warning Minimum - Sets the pressure at which the Nitrous Pressure sensor Number Displays, Gauges and Bars will enter their lower warning state
Warning Maximum - Sets the pressure at which the Nitrous Pressure sensor Number Displays, Gauges and Bars will enter their upper warning state

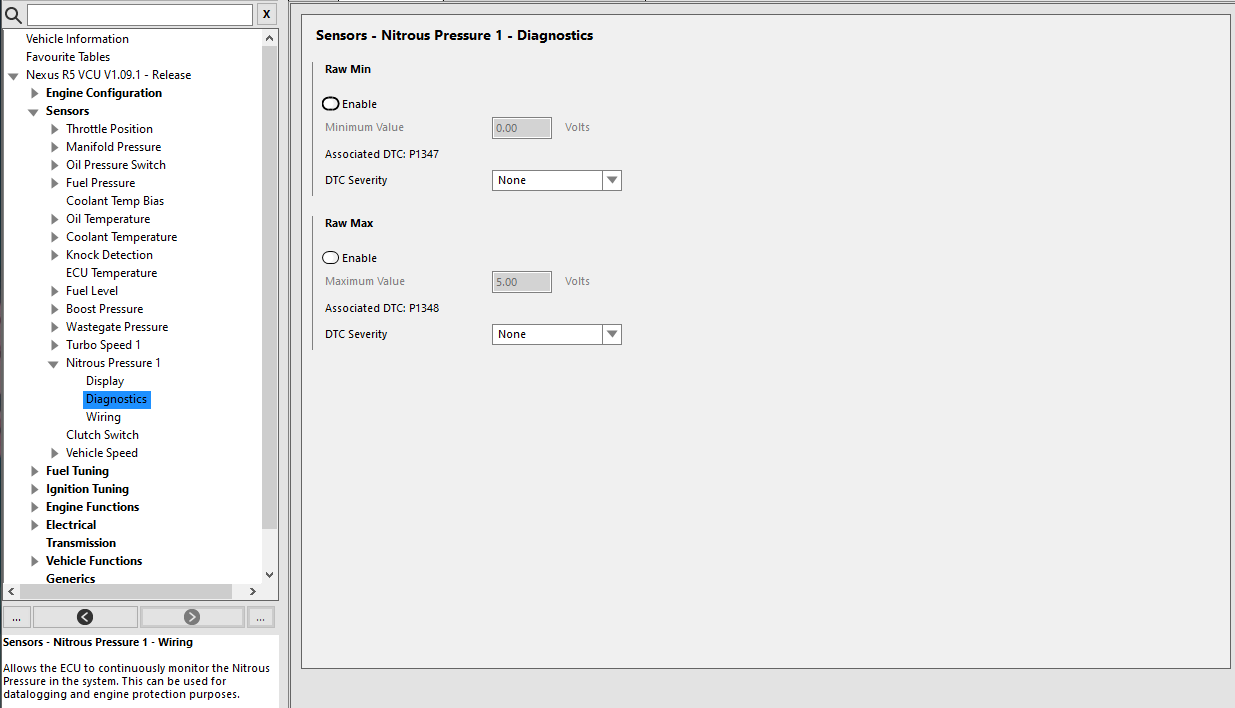

Diagnostics
This node allows the enabling of high and low voltage DTCs for the Nitrous Pressure sensor.
A DTC severity can be set for each voltage, which will trigger an Engine Protection level for the relevant setting.

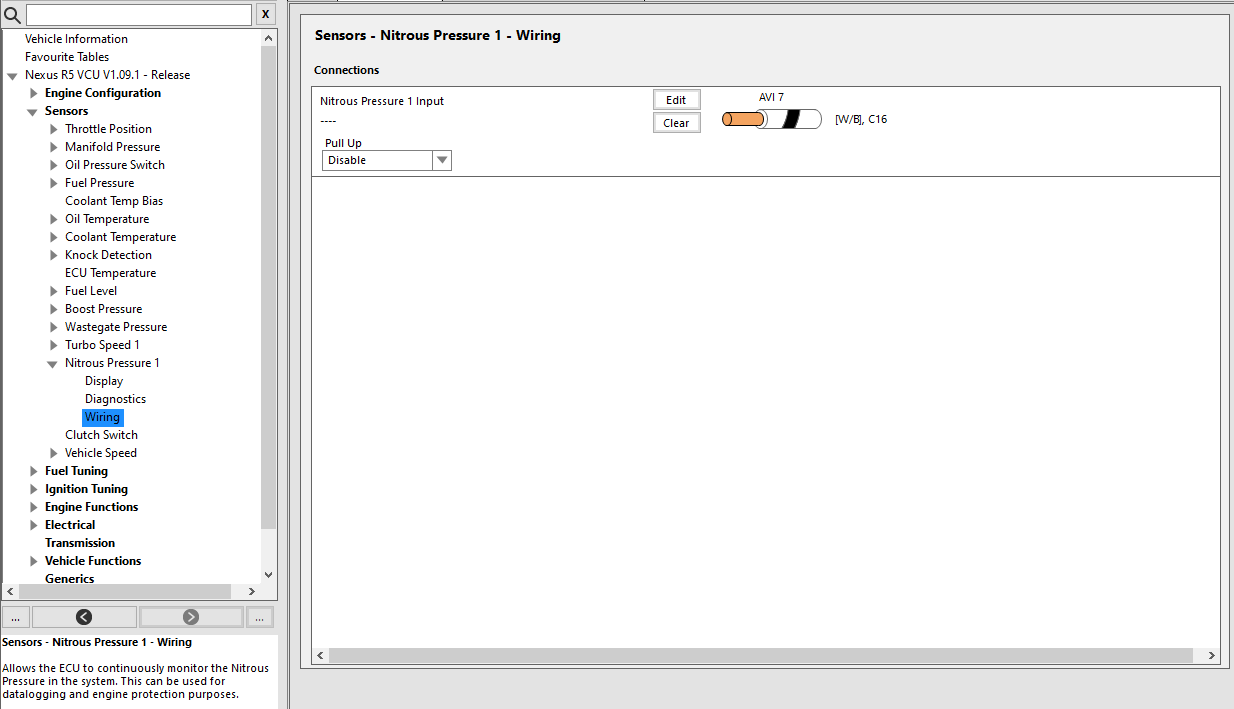

Wiring
This node allows you to assign the input for the Nitrous Pressure sensor.
Pressure Sensors use an Analog Input. Any available AVI can be used.
It is recommended to disable the Pull Up.
