Target AFR Correction

Target AFR Correction

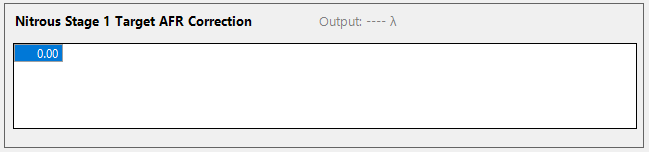

Target AFR Correction Table



This table is only active if enabled in the Nitrous Controller node.
This table applies a correction to the target air to fuel ratio (AFR) when this nitrous stage stage is active. This is NOT the new AFR but a correction to the target AFR.

This value will be ADDED to the target AFR table, For example:
Lambda:
1.00 + -0.03 = 0.97

Up to 3D tuning is available.
