Target Position

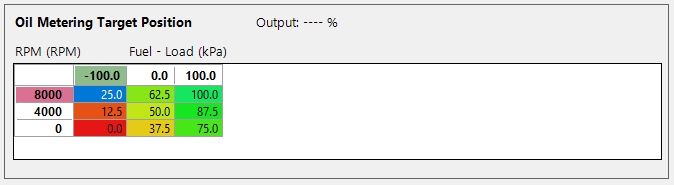

Target Position table

Typically mapped over 3D with RPM and Engine Load, this table will be position of the valve from 0 to 100%.  Low air flow conditions will use small values, and high airflow conditions will use large values. Up to 3D mapping is available.
