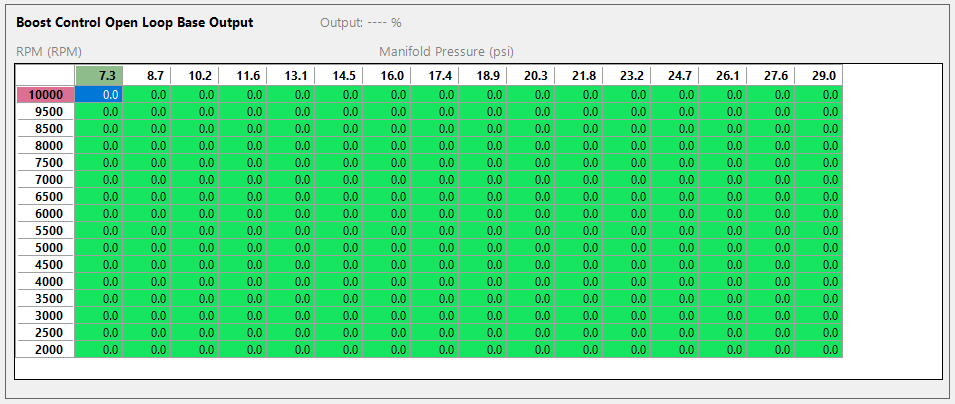

Boost Control Open Loop Base Duty Cycle
Only active when Open Loop is selected as the Mode. This is the duty cycle to be used by the Boost Control system, and should be adjusted to reach the desired amount of boost. No boost target is used in Open Loop and the ECU does not make adjustments to the duty other than what is commanded by the tuner. Up to 4D mapping is available.
