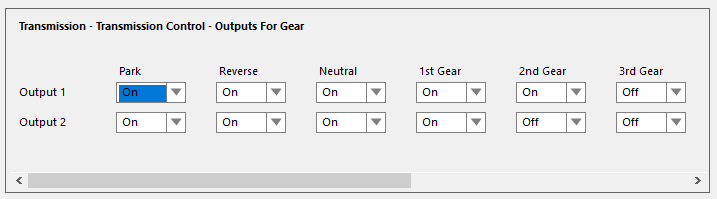

This node allows the tuner to configure which transmission control outputs are on and off in which gear.  This information can be found for most gearbox's in the Workshop or Owners manual.

If you have selected a preconfigured transmission in the transmission Type dropdown of the Transmission Node, the output state for each gear position will be hard-coded and therefore this node is unavailable.
