Pause Condition
Pause Condition

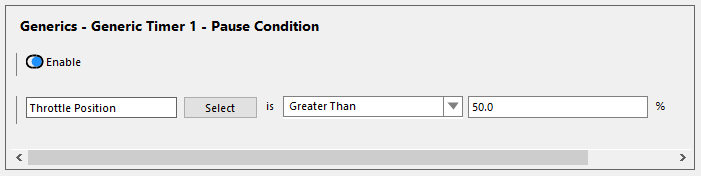

This nodes allows a Pause Condition to be enabled and configured for the Generic Timer.
Enable - Toggle the slider to enable a Pause Condition for the Generic Timer. This allows for the ability to pause the timer if a certain condition is met.
Select - Selection of the ECU channel to be used to Pause the timer.
Maths - A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used to pause the timer.
Value - The value the maths must meet
