Pit Lane Speed Limiter

Pit Lane Speed Limiter

The Pit Lane Speed Limiter function allows a user to limit vehicle speed using either an ignition or fuel cut. This function is designed to limit overall vehicle speed for use when in the pit lane, or driving between stages/race events (eg. Rally Racing). Engine Speed will be limited by a user-defined ignition or fuel cut, and on vehicles using Drive-By-Wire (DBW), a maximum throttle opening  can be applied.

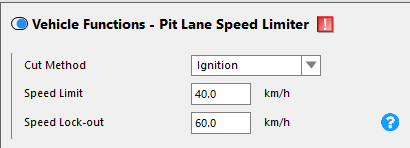

Vehicle Functions - Pit Lane Speed Limiter Settings

Cut Method

Ignition

Controls Engine Speed using an ignition cut. Once the Pit Lane Speed Limit is reached, ignition cut will be active until vehicle speed is below the target vehicle Speed Limit.

Injection

Controls Engine Speed using a fuel cut. Once the Pit Lane Speed Limit is reached, fuel cut will be active until vehicle speed is below the target vehicle Speed Limit.


Speed Limit

This is used to calculate an Engine Speed Limit, which will limit overall vehicle speed. Note: The fastest vehicle speed sensor reading is used, in the event that a single sensor fails, the setting will revert to a separate sensor reading to function.

Speed Lock-Out

This will prevent the Pit Lane Speed Limiter from activating above a certain vehicle speed. This is used to prevent accidental activation while the vehicle is under race conditions (speed).

    • Related Articles

    • Pit Lane Speed Limiter Wiring

      ​Pit Lane Speed Limiter Switch This function will configure an input switch to activate the Pit Lane Speed Limiter. This function can be enabled using any available input including AVI, SPI, or CAN Keypad When using a momentary pushbutton, the Pit ...

    • Pit Lane Speed Limiter Fuel Correction

      ​Fuel Correction The fuel percentage correction when Pit Lane Speed Limiter is active. Positive numbers represent addition fuel being added, negative numbers represents fuel delivery being reduced while the Pit Lane Speed Limiter function is active.

    • Pit Lane Speed Limiter Ignition Correction

      ​Ignition Correction The ignition timing angle correction when Pit Lane Speed Limiter is active. This correction is added (or subtracted) from any/all other ignition timing calculations that are being applied at the time the function is active, i.e. ...

    • Pit Lane Speed Limiter DBW Throttle Max

      (Optional) DBW Throttle Max The maximum Drive-By-Wire throttle opening when the Pit Lane Speed Limiter is active. By default this map is setup using the "Pit Lane Speed Limiter Before Cut" channel as the map axis. This channel represents how far the ...
