Proportional Gain

Proportional Gain

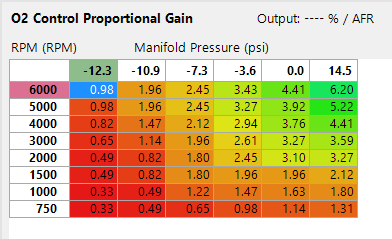

O2 Control Proportional Gain


Axis selection and changing values

This table is intended to be used with engine load set as the first/x (left to right) axis, and RPM as the second/y (bottom to top) axis, though both axes are user configurable to use any ECU channel. Changing the axis values can be accomplished by pressing F3 when the table is selected, then either editing an existing value or adding a new value. Note that if you edit an axis site value, the overall table values will be adjusted so that the shape of the table is unchanged.

Tuning

Using layman's terms, the Proportional Gain adjusts how reactive the system is relative to how much error there is. Increasing this makes the Short Term react faster. Set too high will cause rapid oscillations in the AFR.

Values in this table are dependent on your AFR units selected in the Preferences menu.
