Quick Icon Buttons

Quick Icon Buttons

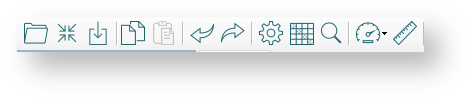

The ECU Software Programmer has quick icon buttons to optimise your tuning experience

Functions of the buttons are detailed below, from left to right:

Open File

Opens the directory when your Maps are stored for quick uploading

Connect / Disconnect

Connects or Disconnect the communications with the ECU.

Save As

Saves your Map to a specified file

Copy

Used to copy map data on tuning tables

Paste

Pastes copied map data to highlighted location on the tables

Undo

Reverts last change (Back)

Redo

Reverts last change (Forward)

Main Setup

opens main setup page for configuration and setup

Table Axis Setup

Enables changing of the current selected table axis.

Change Units

Enables setup of ECU Programming Software channel units
