Recirc Valve Wiring

Wiring

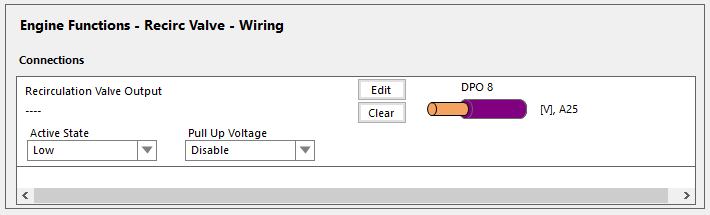

This node allows you to assign the output for the Recirculation Valve. This will typically be a DPO.
