Recovery Time

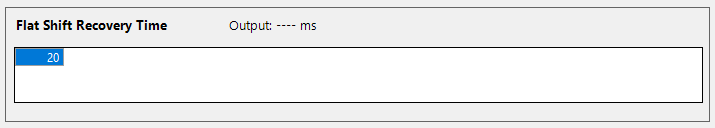

Flat Shift Recovery Time

Available when the Recovery Method involves a Ramp Out. This is the amount of time that the cuts and/or ignition corrections will take to recover completely after a flat shift event. Typically in the 10 to 100ms range. Up to 3D tuning is available.
