Reverse Lockout

Reverse Lockout

Reverse Lockout

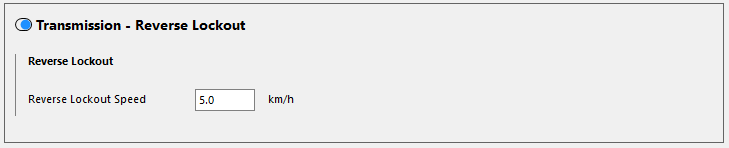

Settings



Reverse Lockout Speed - The vehicle speed required to activate the reverse lockout solenoid.

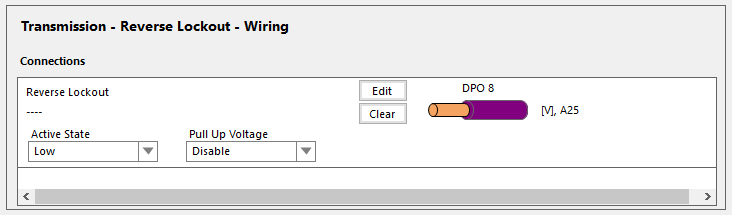

Wiring



Reverse Lockout Output - Select an available output wire, typically a DPO (Digital Pulsed Output) that will be connected to the reverse lockout solenoid.
Active State - Controls the whether the output is normal or inverted. Low will ground the output wire when the output is set to be On. Setting to High will invert this signal, with the output wire being grounded when the output is set to be Off, and not grounded when it is set to be On
