Rotational Idle Wiring

Rotational Idle Wiring

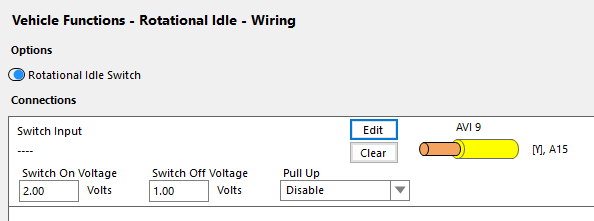

Rotational Idle - Wiring Page



Rotational Idle Switch

Select if a switch is to be wired to the Elite ECU to enable or disable the Rotational Idle function.

Connections

Active only when the Rotational Idle Switch has been Enabled.

Switch Input

Select an appropriate input to use for the Rotational Idle Switch. An SPI or an AVI (Analogue Voltage Input) can be used.

Connection Type

SPI

An SPI (Synchronised Pulsed Input) requires configuring of the edge and the type of Sensor to be connected.

Edge Select

Falling is used when the input is grounded when the switch is activated. Rising is used when the input is supplied voltage when the switch is activated.

Pullup

Enables a pullup if required to generate a voltage when the switch is off.

AVI

An AVI will require Switch On and Switch Off voltages to be configured so the Elite ECU can know which voltages on the AVI meet the conditions required.

Switch On Voltage

The voltage either above or below where the switch is considered to be ON. When selecting an appropriate value some consideration should be given to allow for voltage fluctuations.

Switch Off Voltage

The voltage either above or below where the switch is considered to be OFF. When selecting an appropriate value some consideration should be given to allow for voltage fluctuations. Eg. if the switch is at 5V when it is Off and is grounded to 0V when the switch is On, you would set the On voltage to 1.0V and the Off Voltage to 4.0V.

Example 1
The switch is at 5V when it is Off and is grounded to 0V when the switch is On. Correct settings with tolerance would be to set the On voltage to 0.5V and the Off Voltage to 4.5V. i.e. when the voltage falls below 0.5V it is considered to be ON, and when it rises back above 4.5V it is considered to be OFF.

Example 2
The switch is at 2.5V when it is OFF, and is at 12V when it is ON. Correct settings with tolerance would be to set the On Voltage to 4.5V and the Off Voltage to 3.0V. i.e. when the voltage rises above 4.5V it is considered to be ON, and when it falls back below 3.0V it is considered to be OFF.
