Ride Height Sensor
Ride Height Sensor (Front / Rear)
The Ride height sensors are used to determine the height at both front and rear of the vehicle. They also help to diagnose problems such as Wing Deflection, Chassis Distortion, Bodywork Deflection, Suspension Sag and also any tilt due to a sudden load increase.

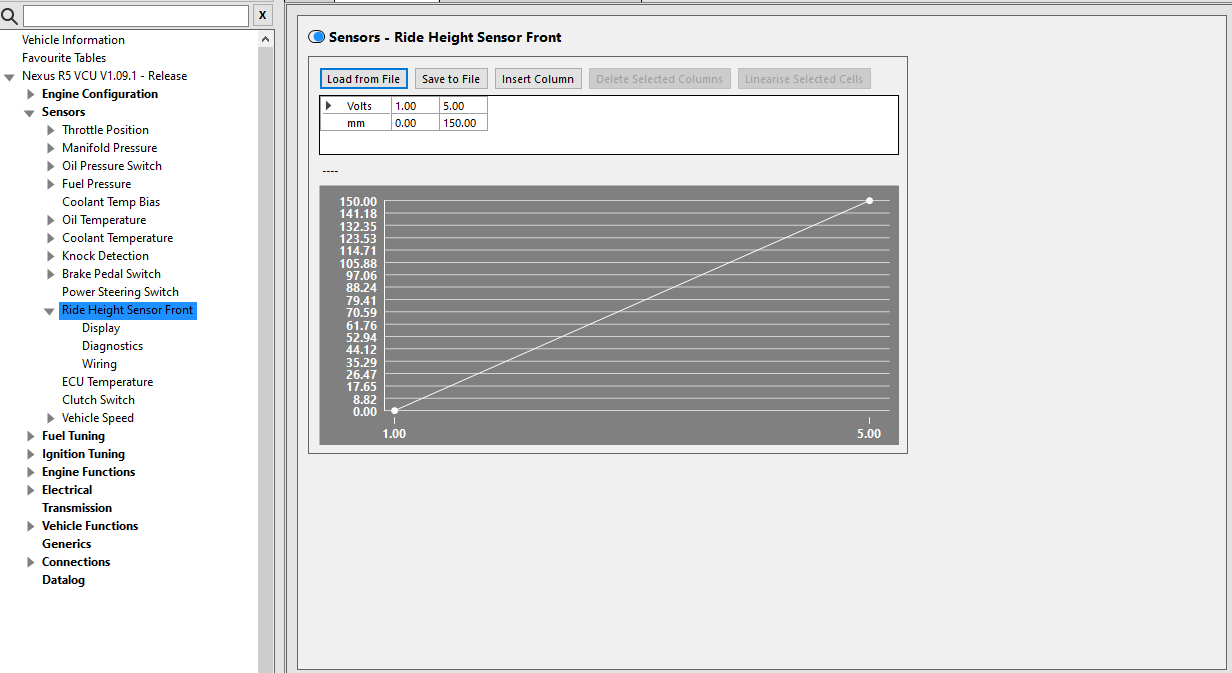

The main node allows the Ride Height sensor calibration to be loaded or entered manually. Saved calibrations can be loaded directly into the calibration table by using the 'Load from File' button. Calibrations can be saved to file by using the 'Save to File' button. The calibration unit can be changed in Preferences > Unit Options.
Display

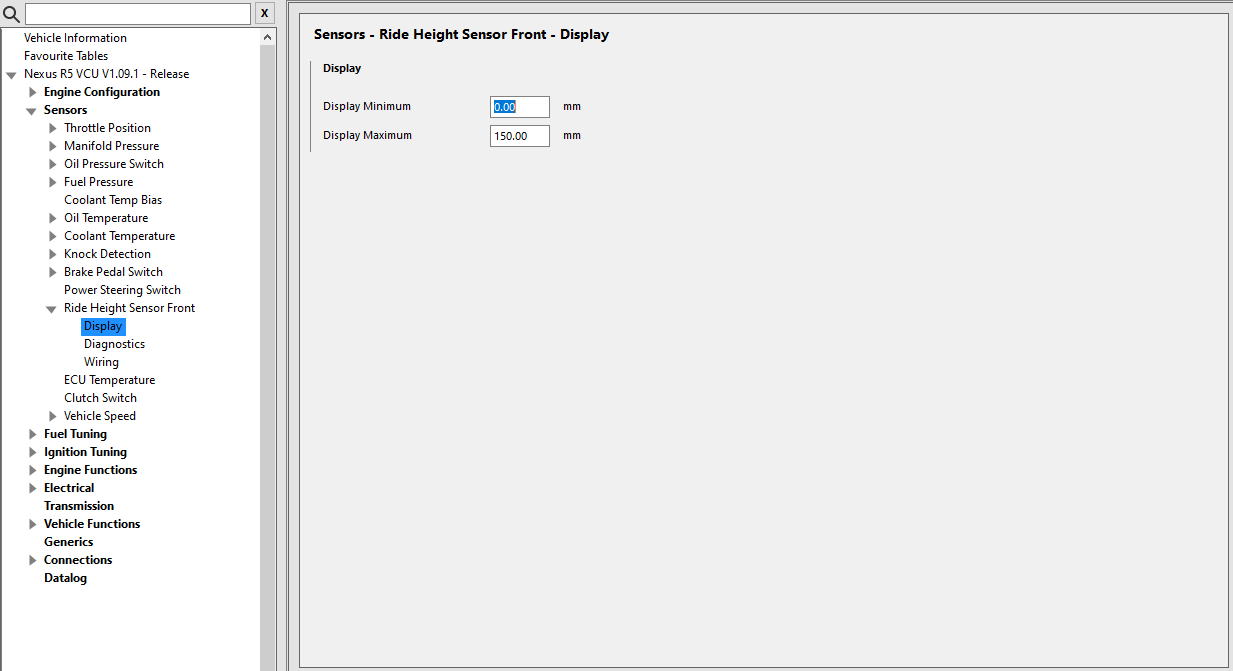

Display Minimum - Sets the height at which the Ride Height Number Displays, Gauges and Bars will start.
Display Maximum - Sets the height at which the Ride Height Number Displays, Gauges and Bars will end.
Diagnostics
This node allows the enabling of high and low voltage DTCs for the Ride Height sensor.
A DTC severity can be set for each voltage, which will trigger an Engine Protection level for the relevant setting.
Wiring

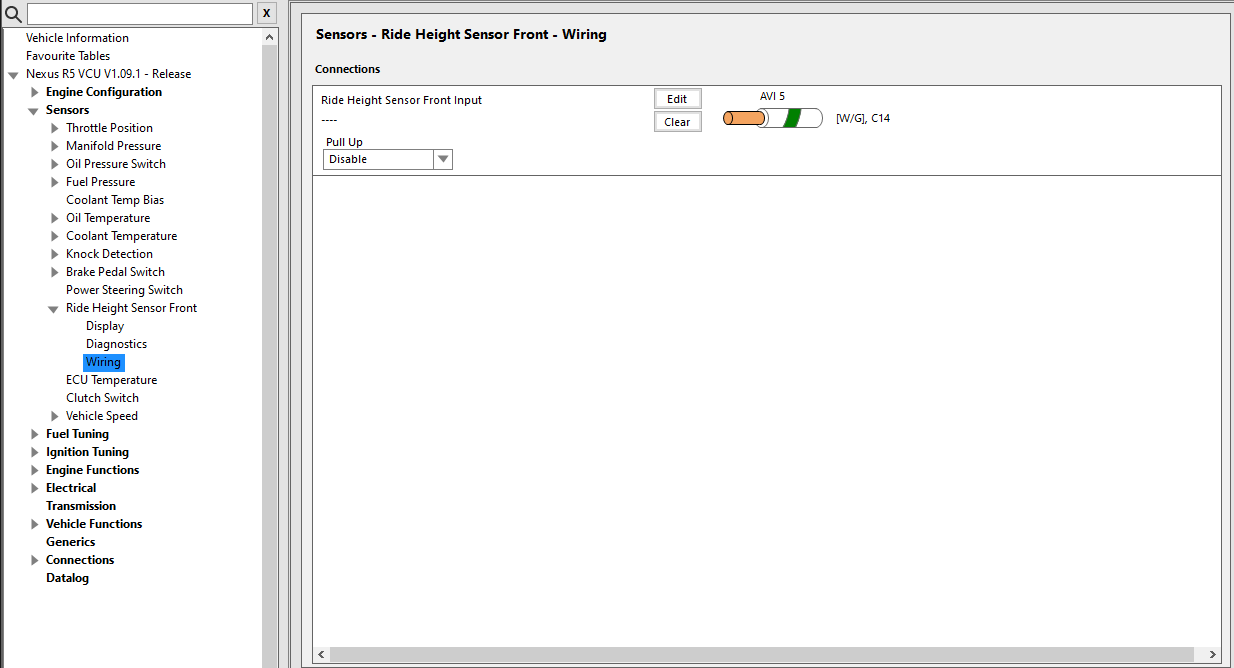

This node allows you to assign the input for the Ride Height sensor.
Height Sensors use an Analog Input. Any available AVI can be used.
It is recommended to disable the Pull Up.
