Rolling Anti-lag
The Rolling Anti-lag function limits either vehicle speed or engine
RPM (whichever is indicated in the settings) while the Rolling
Anti-lag button is pressed, allowing turbocharged engines to build
boost before a rolling launch. This is useful in applications such as
roll racing where it is advantageous to build boost while maintaining
a steady speed.

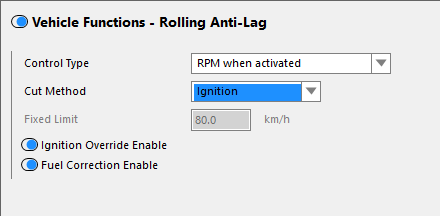

Rolling Anti-Lag Settings
Control Type
RPM when activated
The Rolling Anti-lag will ensure that when activated, the engine will remain at the same RPM as the vehicle was at when the function was activated.
Fixed RPM
The Rolling Anti-lag will ensure that when activated, the engine will remain fixed at the RPM value assigned to the "Fixed Limit" box below.
Speed when activated
The Rolling Anti-lag will ensure that when activated, the engine will remain at the same speed as the vehicle was at when the function was activated. A vehicle speed sensor must be configured when choosing this control type.
Fixed Speed
The Rolling Anti-lag will ensure that when activated, the engine will remain at the fixed at the speed value assigned to the "Fixed Limit" box below.
Cut Method
The method used by the function to perform either RPM or speed limiting.
Ignition override enable
Ticking this box will activate a Ignition override tuning table in ESP under the Rolling Anti-lag tab. Here the Rolling Anti-lag function can be tuned in 2 dimensions.
Fuel Correction enable
Ticking this box will activate a Fuel Correction tuning table in ESP under the Rolling Anti-lag tab. Here the Rolling Anti-lag function can be tuned in 2 dimensions
