RPM Drop

RPM Drop

RPM Drop

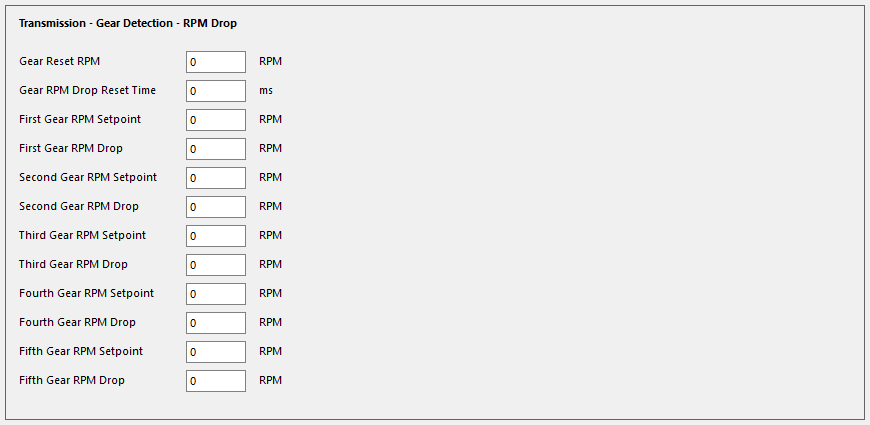

The RPM Drop node is only available if Gear Detection Type is set to RPM Drop in the Gear Detection function


Gear Reset RPM

The Engine RPM must fall below this amount to reset the gear position back to Gear 1.

Gear RPM Drop Reset Time

The Engine RPM must fall below the Gear Reset RPM for this amount of time.

First, Second, Third, Fourth, Fifth Gear Setpoint

The Engine RPM must be above this amount before the ECU will look for an Engine RPM Drop amount.

First, Second, Third, Fourth, Fifth Gear Drop

When the Engine Speed falls by this amount after the Gear Set point has been exceeded, the Gear number will be incremented.
