RPM Limiter Correction

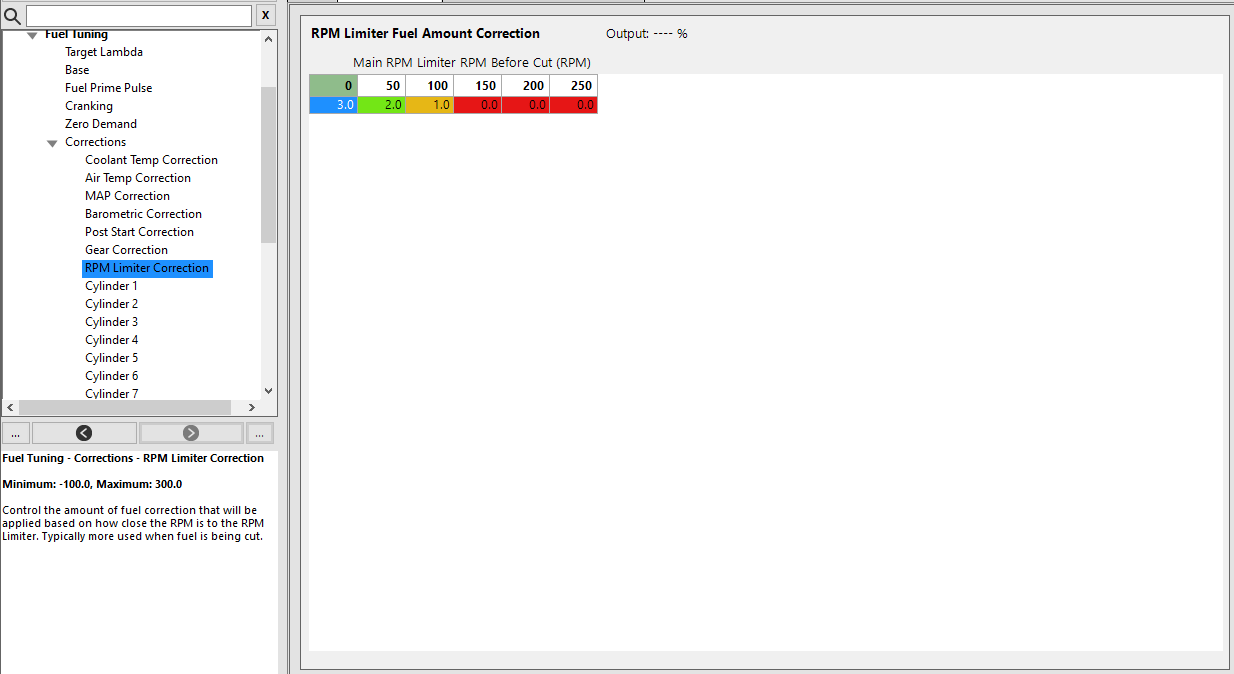

This table controls the fuel correction applied as the engine RPM approaches the Main RPM Limiter End RPM.

Generally, a small correction is made just before the engine reaches the RPM limiter to help soften the effects of the limiter.
