Secondary Off RPM

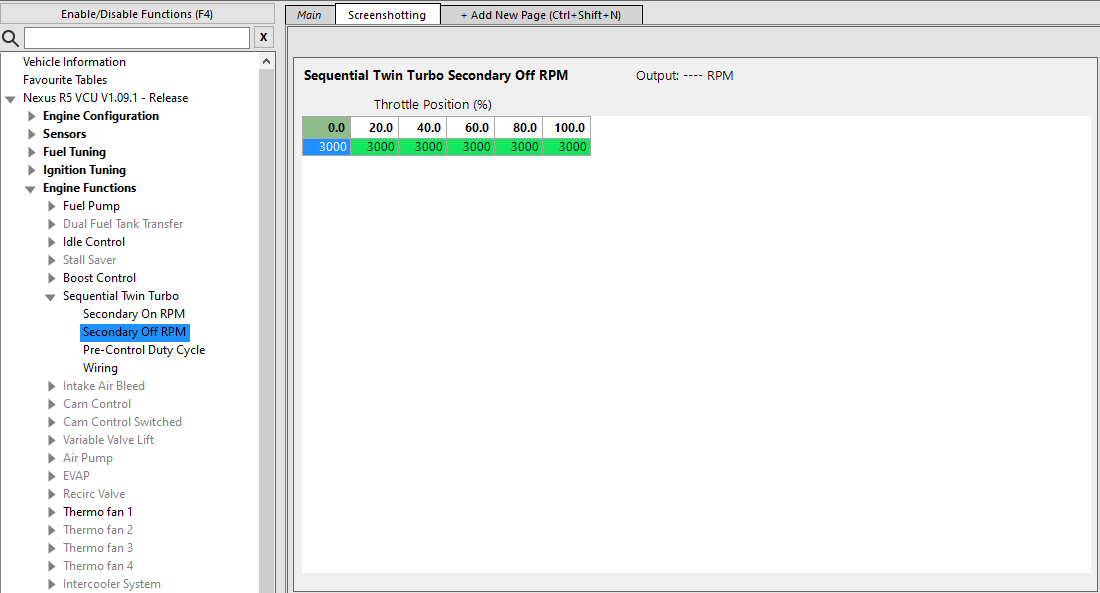

Sequential Twin Turbo Secondary Off RPM Table

This table sets the RPM at which the secondary turbo is deactivated. Up to  3D mapping is available
