Secondary On RPM

Secondary On RPM

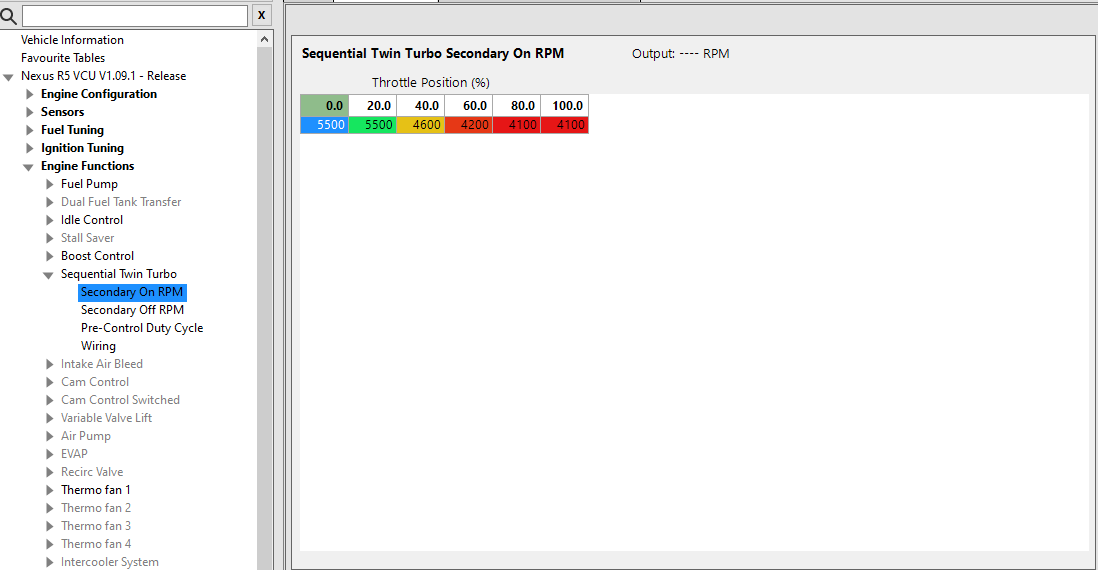

Sequential Twin Turbo Secondary On RPM Table



This table sets the RPM at which the secondary turbo is activated. Up to  3D mapping is available
