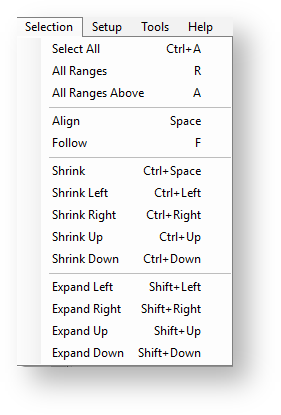

Selection

Selection

Select All

Selects everything in view

All Ranges

Toggle All Ranges Mode of selection.

All Ranges Above

Toggle All Ranges Above mode of selection. Only available when All Ranges Mode is enabled.

Align

Aligns the cursor to current engine operating point

Follow

Aligns the cursor to the bottom most cell on the left

Shrink

Shrinks the selection to a single cell

Shrink Left

Decreases the number of selected cells by deselecting one column from the right, shrinking towards the left

Shrink Right

Decreases the number of selected cells by deselecting one column from the left, shrinking towards the right

Shrink Up

Decreases the number of selected cells by deselecting one row from the bottom, shrinking towards the top

Shrink Down

Decreases the number of selected cells by deselecting one row from the top, shrinking towards the bottom

Expand Left

Increases the number of selected cells by highlighting one extra column to the left

Expand Right

Increases the number of selected cells by highlighting one extra column to the right

Expand Up

Increases the number of selected cells by highlighting one extra row on the top

Expand Down

Increases the number of selected cells by highlighting one extra row on the bottom
