Sequential Twin Turbo - RX-7

Sequential Twin Turbo - RX-7

The Sequential Twin Turbo (RX-7) function is used to control the valves that ensure that twin turbo configurations (such as that in an RX-7) work safely and efficiently.



Wiring Tab

Connections

Pre-control Valve

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for the Pre-Control Valve.

Exhaust Valve

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for the Exhaust Valve.

Charge Relief Valve

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for the Charge Relief Valve.

Charge Valve

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for the Charge Valve.

Settings Tab

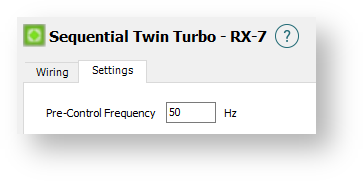

Pre-Control Frequency

Select the frequency of the Pre-Control Valve
