Shift Duration

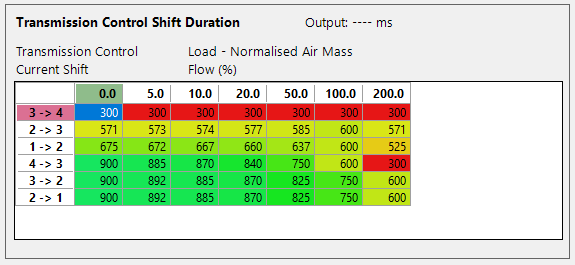

Shift Duration Table
The Shift Duration table determines how long the outputs are on for during a shift. Most applications with regulated air pressure will use a single cell in the table.
An application without regulated pressure supply might require longer to shift at lower pressures. You could simply take a conservative approach and use a long time, or you could map the shift duration against the air supply pressure.
An application without regulated pressure supply might require longer to shift at lower pressures. You could simply take a conservative approach and use a long time, or you could map the shift duration against the air supply pressure.
If the Shift Duration is too short, some shifts may not actually occur, and the transmission will remain in the old gear. It's also possible that a false Neutral will be accidentally selected, and the transmission may then fall into either the previous gear or the desired gear. On Motorbike Style, you may select the real Neutral if shifting between 1st and 2nd gears.
If the Shift Duration is too long, the driver will have to wait too long before being able to perform another shift.
If the Shift Duration is too long, the driver will have to wait too long before being able to perform another shift.
