Shift Lights

Shift Lights

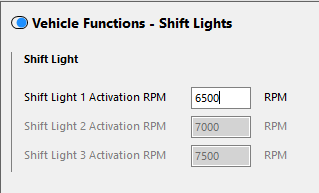

Shift Lights Page



Shift Light 1 through to Shift Light 3 are separate shift lights that can be used to indicate various shift points at different engine speeds.

Shift Light 1 Activation RPM

Enter the RPM above which you want the first shift light to turn on.

Shift Light 2 Activation RPM

Enter the RPM above which you want the second shift light to turn on.

Shift Light 3 Activation RPM

Enter the RPM above which you want the third shift light to turn on.
