Shift Lights

Shift Lights

Shift Light 1 through to Shift Light 3 are separate shift lights that can be used to indicate various shift points at different engine speeds.

Page Contents

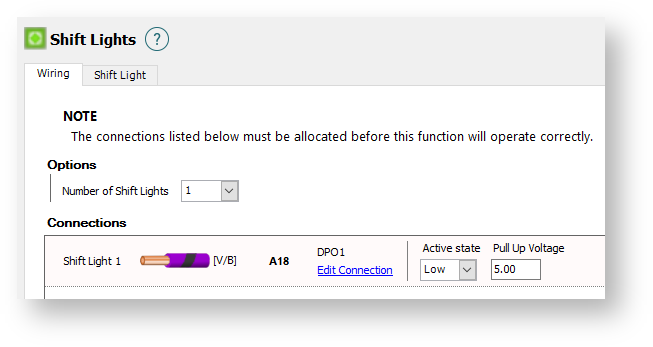

Wiring Tab

Options

Number Of Shift Lights

Select the number of individually-controlled shift lights connected.

Connections

Shift Light 1

Select an output for the first shift light.

Shift Light 2

Select an output for the second shift light.

Shift Light 3

Select an output for the third shift light.

Connection Type

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for each Shift Light.

Active State

Controls the whether the output is normal or inverted. Low will ground the output wire when the output is set to be On. Setting to High will invert this signal, with the output wire being grounded when the output is set to be Off, and not grounded when it is set to be On. (Default = Low)

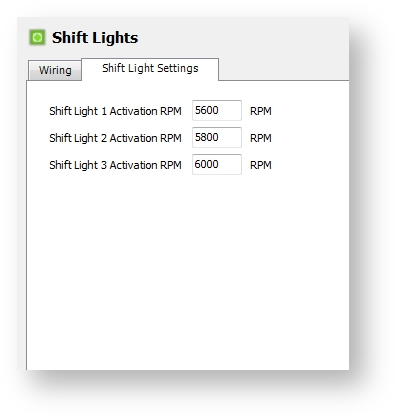

Shift Light Tab

Shift Light 1 Activation RPM

Enter the RPM above which you want the first shift light to turn on.

Shift Light 2 Activation RPM

Enter the RPM above which you want the second shift light to turn on.

Shift Light 3 Activation RPM

Enter the RPM above which you want the third shift light to turn on.
