Shock Travel Sensors

Shock Travel Sensors

Shock Travel sensors are used to monitor suspension deflection, through shock absorber movement - m onitoring even the slightest amount of shock travel or tire shake. This is the common method of tracking suspension and tire performance.

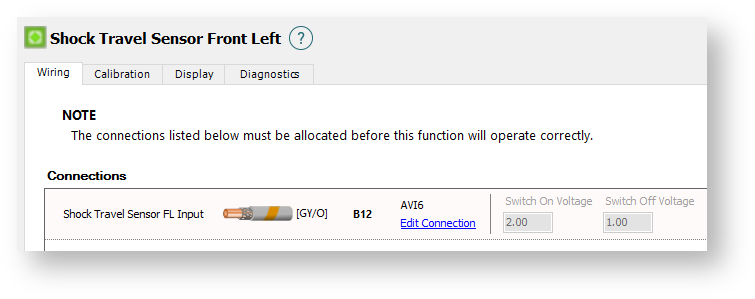

Wiring Tab

Connections

Shock Travel Sensors Input

Select an appropriate input to use for the Shock Travel sensor. An AVI (Analogue Voltage Input) or an SPI (Synchronised Pulsed Input) should be used.

Connection Type

An AVI (Analogue Voltage Input) or SPI (Synchronised Pulsed Input) should be used.

AVI

An AVI (Analogue Voltage Input) is suggested.

Pull up

Enables a 1k pull up resistor to 5V.

Typically the pull up should be enabled with any two-wire temperature sensor, and disabled for sensors with their own voltage supply. If the sensor is being shared with another ECU, such as with a piggyback installation with an OEM ECU, then the other ECU will generally include a necessary pull up and this setting should be set to Disabled.

SPI

An SPI (Synchronised Pulsed Input) can be used where there are no available AVIs.

Sensor Type

Set to Hall Effect for all analogue inputs

Pull up

Enables a weak 10k pull up resistor to 5V.

Typically the pull up should be enabled with any two-wire temperature sensor, and disabled for sensors with their own voltage supply. If the sensor is being shared with another ECU, such as with a piggyback installation with an OEM ECU, then the other ECU will generally include a necessary pull up and this setting should be set to Disabled.

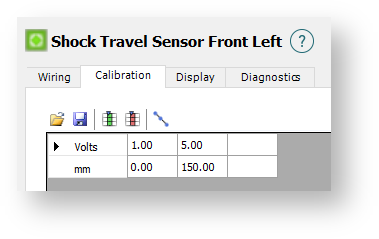

Calibration Tab

This allows calibrations for a Shock Travel Sensor to be loaded or saved. A number of calibrations come pre-installed with the ESP Software package. If your sensor is not listed, a custom calibration can be created with the data provided by the sensor manufacturer.

From the image above:

1 – Selecting the yellow Open icon on the top left will allow the loading of a pre-configured calibration file.

2 – Selecting the blue Disk icon next to the open icon will allow the saving of your custom calibration file.

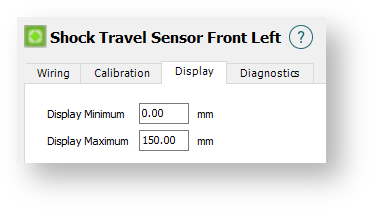

Display Tab

Display Minimum

Sets the minimum pressure that a shock gauge can display. This does not affect the reading of the sensor, only what can be displayed in the ESP software.

Display Maximum

Sets the maximum pressure that any shock gauge can display. This does not affect the reading of the sensor, only what can be displayed in the ESP software.

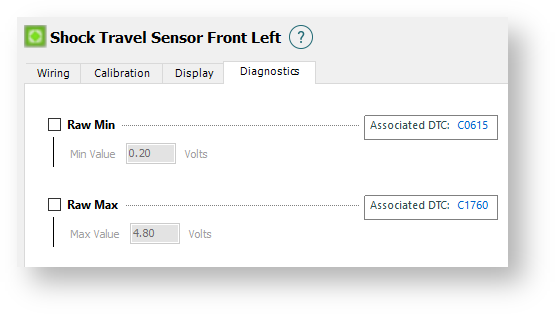

Diagnostics Tab

The settings in this tab allow limits to be set for the detection of either fault conditions, or conditions that could be considered to cause damage due or related to the shock travel.

Raw Min

When enabled, this allows for the error code C0615 to be set when the voltage is below the set amount. This is used to detect a short or disconnection with the wiring. If the Engine Protection function is active a DTC Severity level can be selected for this condition if desired. (Default = Disabled)

Raw Max

When enabled, this allows for the error code C1760 to be set when the voltage is above the set amount. This is used to detect a short or disconnection with the wiring. If the Engine Protection function is active a DTC Severity level can be selected for this condition if desired. (Default = Disabled)
