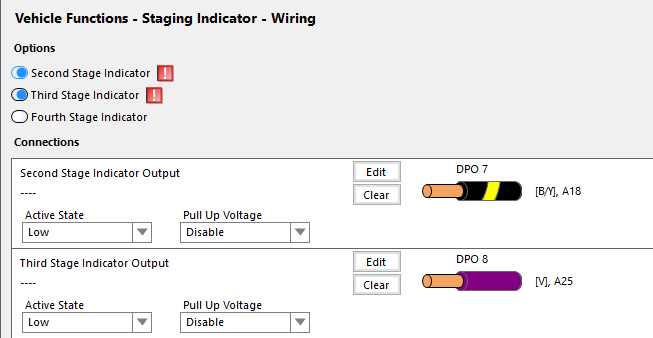

Stage Indicator Wiring

Options

Second Stage Indicator

Enables the second stage indicator light.

Third Stage Indicator

Enables the third stage indicator light.

Fourth Stage Indicator

Enables the fourth stage indicator light.

Connections

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for each Output.

Active State

Controls the whether the output is normal or inverted. Low will ground the output wire when the output is set to be On. Setting to High will invert this signal, with the output wire being grounded when the output is set to be Off, and not grounded when it is set to be On. (Default = Low)
