Start Motor Wiring

Start Motor Wiring

Wiring

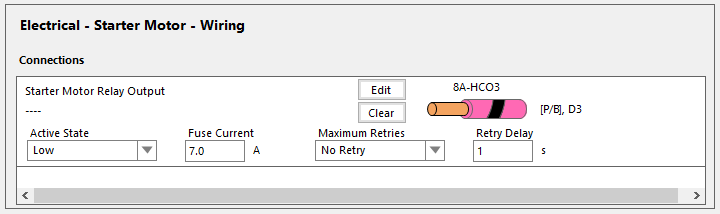

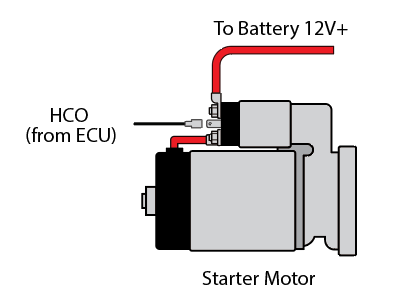

This node allows you to assign the output for Starter motor control. Starter motors draw extremely large amounts of current and therefore must be wired and controlled through the starter motor solenoid. You can do this by using a 25A or 8A High Current Output (HCO) or a Half Bridge Output (HBO) wired directly to the starter solenoid.


Edit - Click to assign / reassign an available output as Starter Motor Relay Output.

Clear - Click to reset Output assignment.

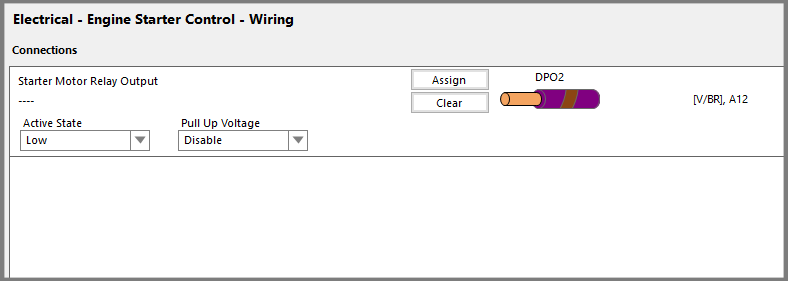

Alternatively, a Digital Pulsed Output (DPO) or a spare Injector or Ignition output can also be used to trigger a relay that drives the starter solenoid.
