Intercooler Spray

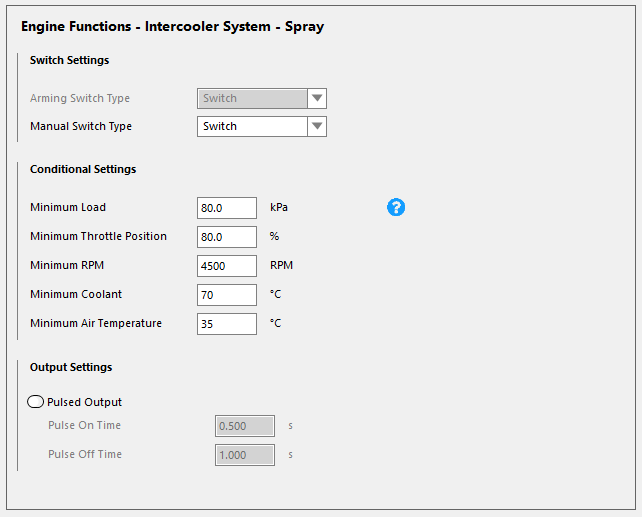

Spray Settings
Switch Settings
Arming Switch Type - The type of switch that is used for the arming input.
Switch - Simple two-way switch that is either in the "on" or "off" position.Latching - Switch that alternates between 'on' and 'off' state when pressed (momentary button).
Manual Switch Type - The type of switch that is used for the manual input.
Switch - Simple two-way switch that is either in the "on" or "off" position.Latching - Switch that alternates between 'on' and 'off' state when pressed (momentary button).
Conditional Settings
Intercooler spray will be active when all of the conditions are exceeded simultaneously.
Minimum Load - Intercooler spray is enabled when this load value is exceeded
Minimum Throttle Position - Intercooler spray is enabled when this throttle position value is exceeded.
Minimum RPM - Intercooler spray is enabled when this RPM value is exceeded.
Minimum Coolant Temperature - Intercooler spray is disabled while coolant temperature is below this value.
Minimum Air Temperature - Intercooler spray is disabled while air temperature is below this value.
Output Settings
Pulsed Output - Enables a pulsed output with a set on/off time. If this setting is disabled, when the output is active it will not be pulsed.
Pulse On Time - Enter the on time in ms for the pulsed output.
Pulse Off Time - Enter the off time in ms for the pulsed output.
