Staging Indicator

Staging Indicator

This function uses an output to indicate when the engine is in the staging section of map, i.e When the load has increased beyond the Staging Load Bar in the Fuel Setup page.There are no parameters to setup for this output. This output will not activate if staged fuel is not enabled.

Note: The staging signal does not pulse with the other injectors. It switches on and stays activated while the load is above the staging point. The pulsed outputs can be configured using the Extra Injector output type.

Page Contents

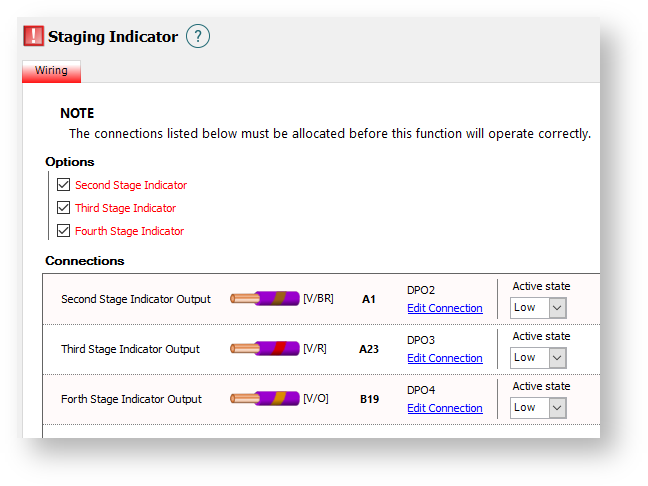

Wiring Tab

Options

Second Stage Indicator

Enables the second stage indicator light.

Third Stage Indicator

Enables the third stage indicator light.

Fourth Stage Indicator

Enables the fourth stage indicator light.

Connections

Select an available output wire, typically a DPO (Digital Pulsed Output) or Stepper Output that will be connected for each Output.

Active State

Controls the whether the output is normal or inverted. Low will ground the output wire when the output is set to be On. Setting to High will invert this signal, with the output wire being grounded when the output is set to be Off, and not grounded when it is set to be On. (Default = Low)
