Tacho Wiring

Tacho Wiring

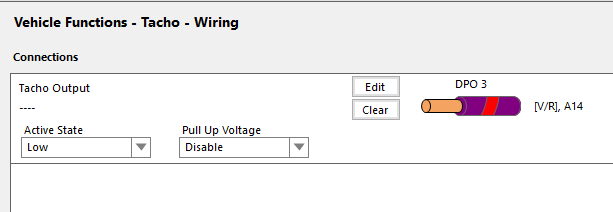

Tacho Wiring Page



Connections

Tacho Output

Select an appropriate Output to use for the Tachometer. An output with a Active Pull Up is required to provide a signal for your tachometer

Active State

Controls the whether the output is normal or inverted. Low will ground the output wire when the output is set to be On. Setting to High will invert this signal, with the output wire being grounded when the output is set to be Off, and not grounded when it is set to be On. (Default = Low)
