Cut Percentage

Cut Percentage

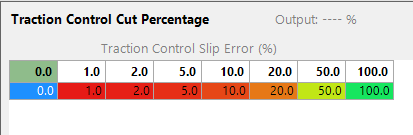

When the Cut Percentage Traction Control method is selected this table controls the rate of ignition or fuel cut events based on the Traction Control Slip Error. Higher wheel slip error results in increased power reduction.


Traction Control Slip Error is the difference in measured wheel slip and the output of the desired slip table. Positive Slip Error numbers mean the measured slip is greater than desired.
