Throttle Blip Amount

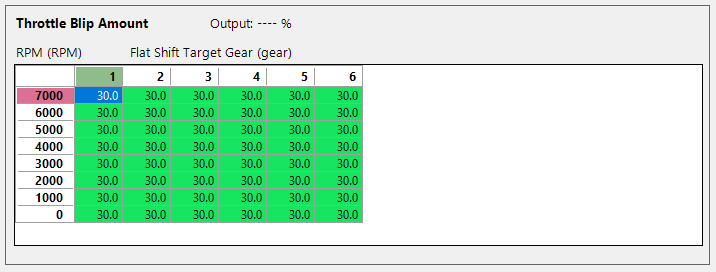

Throttle Blip Amount Table
Only available if Throttle Blip in enabled.
The commanded throttle position percentage. During a blip event, the throttle will open to this throttle position unless a conditional setting forces an exit. Up to 3D tuning is available.
