Throttle Blip Duration

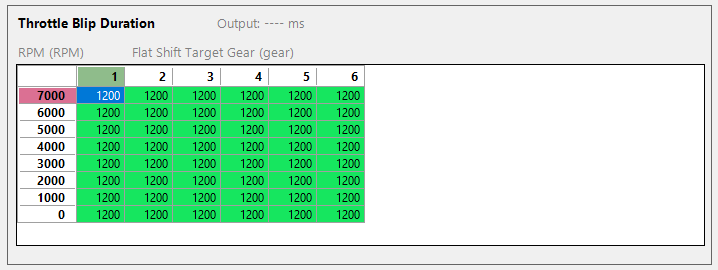

Throttle Blip Duration Table

Only available if Throttle Blip is enabled.

The amount of time (in ms) for the blip to occur. A cell value of 1000 will incur a blip of set percentage to occur for 1000ms, or until a conditional setting forces an exit. Up to 3D mapping is available.
