Torque Reduction Time

Torque Reduction Time

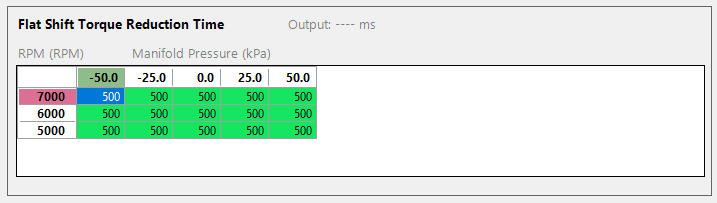

Flat Shift Torque Reduction Time



This table set the amount of time (in ms) that flat shift will make a full Torque Reduction. Up to 3D tuning is available.
If in Timed Mode: The total amount of time to use full Torque Reduction.
If in Closed Loop Mode: (If available to this ECU) The amount of time to maintain full Torque Reduction once the new gear has been detected. This allows the gearbox to fully engage the next gear.
